Basic Info.
Model NO. | APM15w | Power Source | 3VDC |
Trademark | OEM/ODM | Origin | Kunshan,China |
Sensor Type | PPFD | HS Code | 9031499090 |
Mearsurement Range | 0~4000 umol/m2/sec1 | Production Capacity | 80000 Pieces/Year |
Battery | 5# internal | Transport Package | Carton |
Main Unit: Size | 115 x 60 x 24mm | Package Type | 1 pcs/Color Box |
Sensor Unit: | Φ30x 40mm | Weight | 170g Device only |
Product Description:

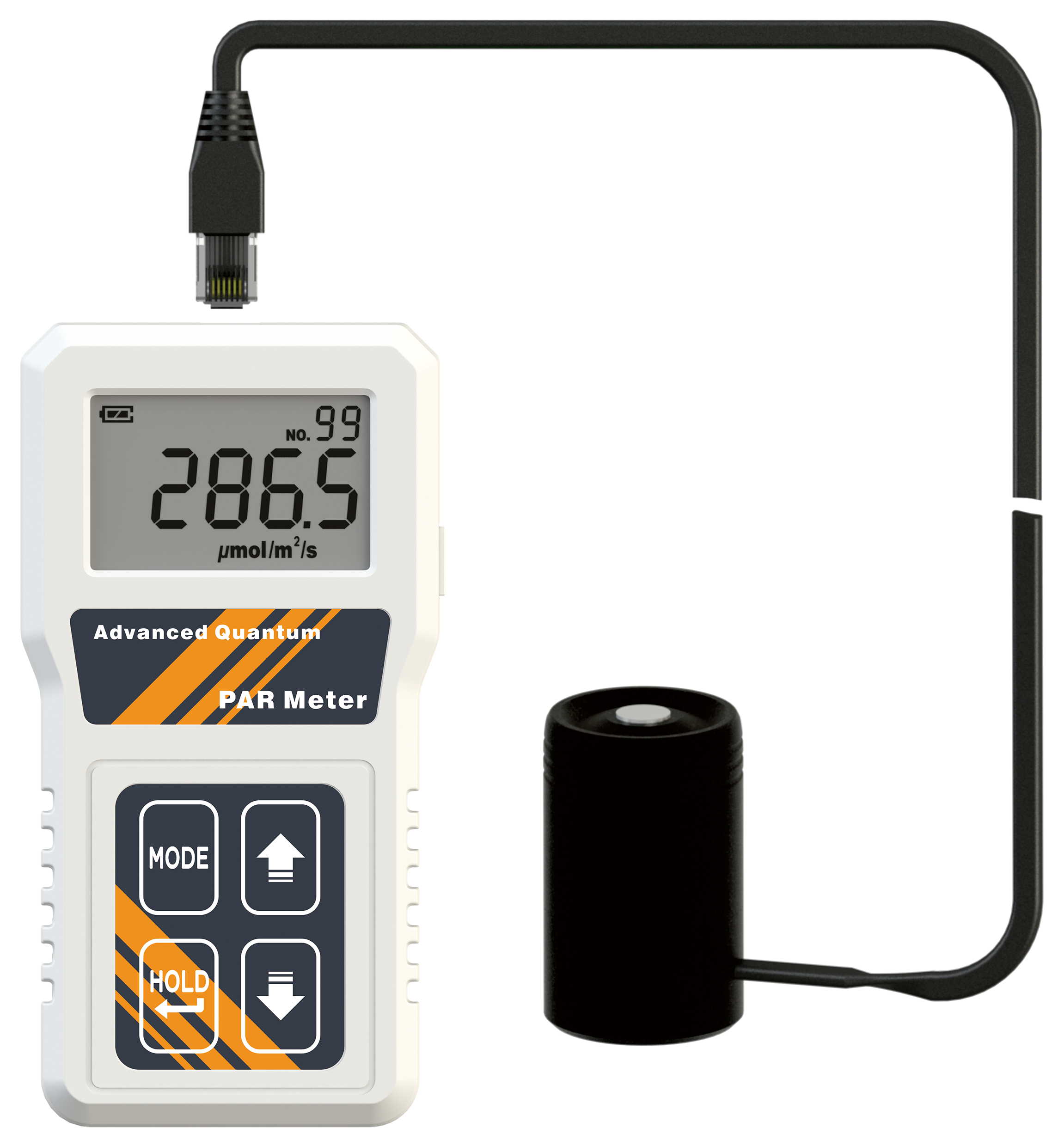

The waterproof APM15w PAR Meter is mainly used for agriculture, horticulture, aquarium, reef tank and other research and production departments for PAR radiation measurement. It is designed to measure PAR (Photosynthetically Active Radiation) flux in wavelengths ranging from 400 to 700 nanometer for both sunlight and electric light. Its characteristics are the spectral response simulation probe photosynthetic function effectively, digital show, portable compact, with good accuracy and stability. In controlled environment agriculture (CEA) and reef tank, it is ideal for growers and aquarium enthusiasts to measure light to avoid the risk of wasting energy or damaging their plants.
Feature:
Ø Repeatability +/-1 μmol/m2/sec
Ø Measurement Range 0-4000 μmol/m2/sec
Ø Display Resolution 0.1 μmol/m2/sec (0-999); 1 μmol/m2/sec(1000-3999)
Ø Cut-On Wavelength 400+/-10nm
Ø Cut-Off Wavelength 700+/-10nm
Ø Memory Record 100 Data log
Method Of Application
Specifications:
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter
Measurement | Specifications |
Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
Operating & Storage RH | 0-95%, non-condensing |
PPFD Measurement |
|
Repeatability | +/-1 μmol/m2/sec |
Measurement Range | 0-3999 μmol/m2/sec |
Display Resolution | 0.1 μmol/m2/sec (0-999); 1 μmol/m2/sec (1000-3999) |
Cut-On Wavelength | 400+/-10nm |
Cut-Off Wavelength | 700+/-10nm |
Power Requirements | 2 x AAA batteries |
Dimension | Main Unit: 115 x 60 x 24mm Sensor Unit Φ30x 40mm |
Weight | 170g (without batteries and cable) |
