Basic Info.
Model NO. | APM130 | Power Source | 3VDC |
Trademark | OEM/ODM | Origin | Kunshan,China |
Sensor Type | PPFD | HS Code | 9031499090 |
Mearsurement Range | 0~4000 umol/m2/sec1 | Production Capacity | 80000 Pieces/Year |
Battery | 5# internal | Transport Package | Carton |
Main Unit: Size | 115 x 60 x 24mm | Package Type | 1 pcs/Color Box |
Sensor Unit: | 80 x 45.6 x 26mm | Weight | 115g Device only |
Product Description:

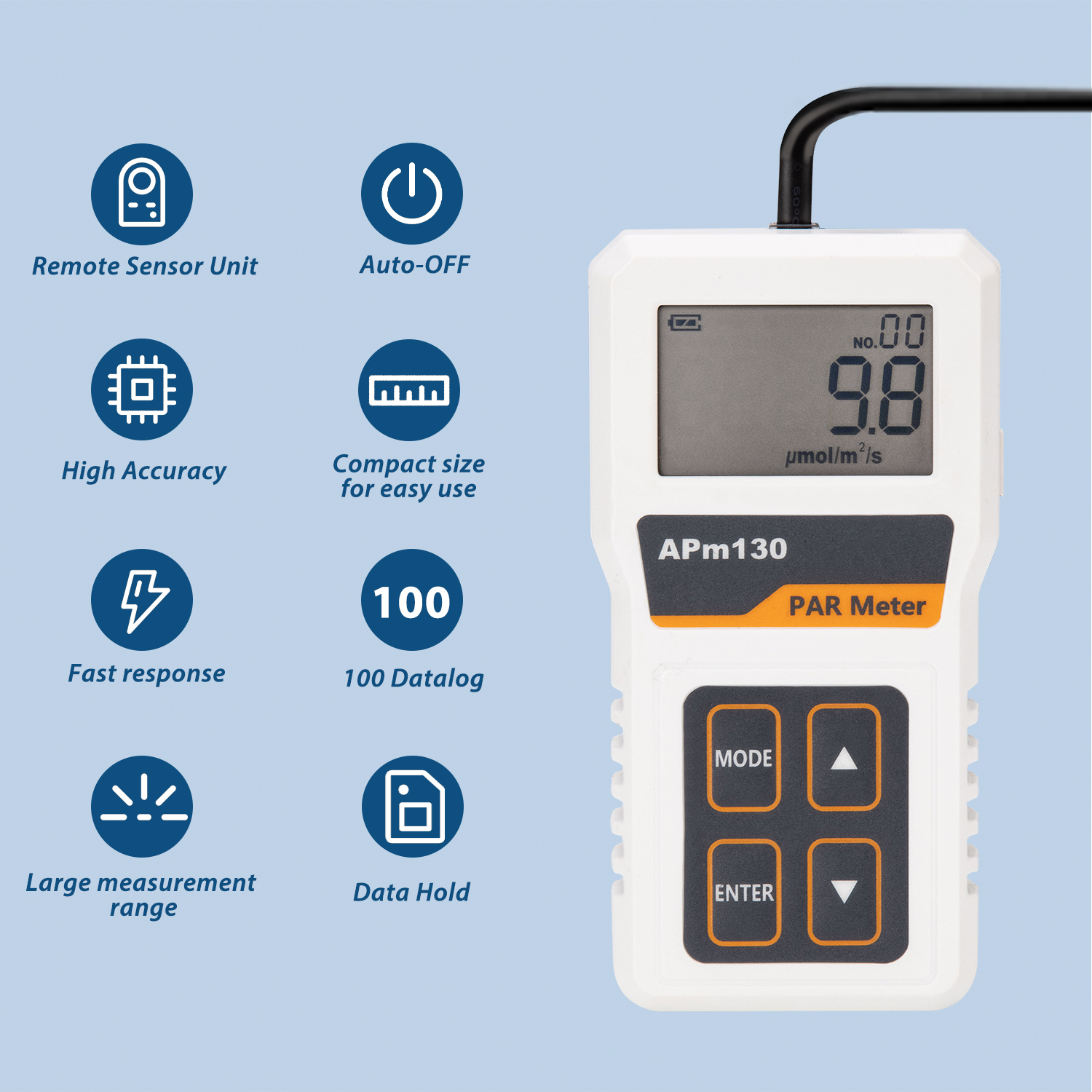

The hand held APM130 par meter mainly used for agriculture, forestry and other research and production departments for PAR radiation measurement.
It is designed to measure PAR (Photosynthetically Active Radiation) flux in wavelengths ranging from 400 to 700 nanometer. Its characteristics are the spectral response simulation probe photosynthetic function effectively, digital show,portable compact, with good accuracy and stability.
In controlled environment agriculture(CEA), it is ideal for growers to measure light to avoid the risk of wasting energy or damaging their plants.
Feature:
Ø Repeatability +/-1 μmol/m2/sec
Ø Measurement Range 0-4000 μmol/m2/sec
Ø Display Resolution 0.1 μmol/m2/sec (0-999); 1 μmol/m2/sec(1000-3999)
Ø Cut-On Wavelength 400+/-10nm
Ø Cut-Off Wavelength 700+/-10nm
Ø Memory Record 100 Data log

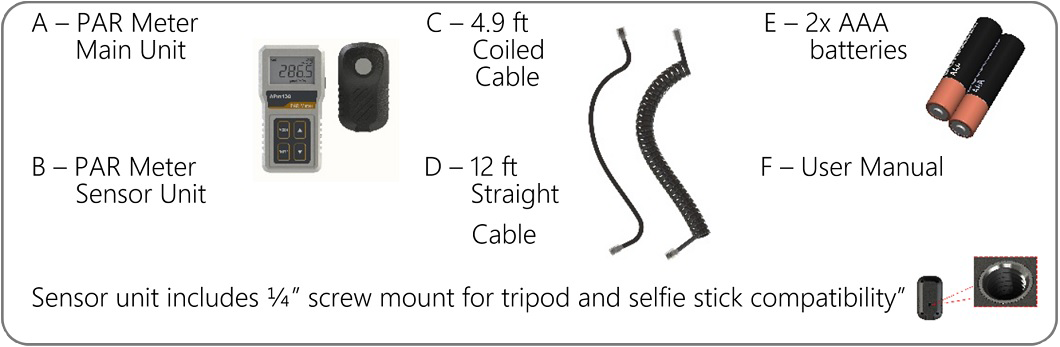

Package Contents:
Operating Instructions

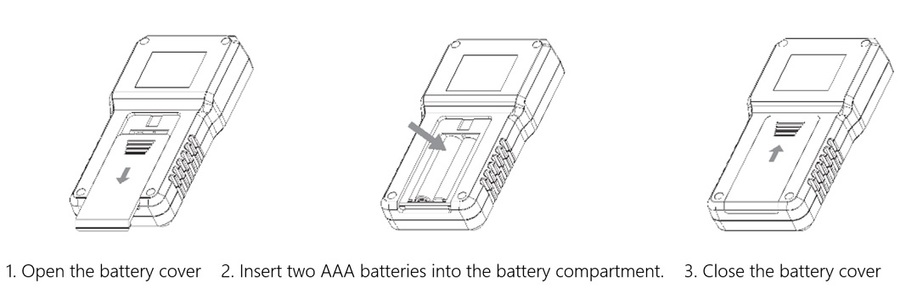

Initial Setup: When first unboxing, please open the battery cover, and pull out the battery insulator. All the LCD segments will be on. Then the quantum meter beginning measurement. Usually, your product is ready, no need to initial setup or calibration.
Specifications:
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter
Measurement | Specifications |
Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
Operating & Storage RH | 0-95%, non-condensing |
PPFD Measurement |
|
Repeatability | +/-1 μmol/m2/sec |
Measurement Range | 0-3999 μmol/m2/sec |
Display Resolution | 0.1 μmol/m2/sec (0-999); 1 μmol/m2/sec (1000-3999) |
Cut-On Wavelength | 400+/-10nm |
Cut-Off Wavelength | 700+/-10nm |
Power Requirements | 2 x AAA batteries |
Dimension | Main Unit: 115 x 60 x 24mm Sensor Unit: 80 x 45.6 x 26mm |
Weight | 115g (without batteries and cable) |
APM130 PAR Meter_Catalog_002.pdf
